How to install a flagpole

Flagpole 5–18 m

1. Foundation and base

1.1 Hole preparations

  • Dig hole according to chart recommendation. If the ground is soft or sandy, increase the hole diameter.
  • Fill bottom 5 cm of hole with crushed stone.
  • Fill hole with concrete. Give the top a convex shape to allow for water runoff.
Flagpole (m) 5–6 8 9 10
Hole diameter (cm) 35 35 40 45
Hole depth (cm) 90 90 100 120
Flagpole (m) 12 14 16 18
Hole diameter (cm) 45 75 75 75
Hole depth (cm) 120 150 180 180

Please note these are recommended dimensions for normal ground conditions. We also recommend digging the hole by hand.

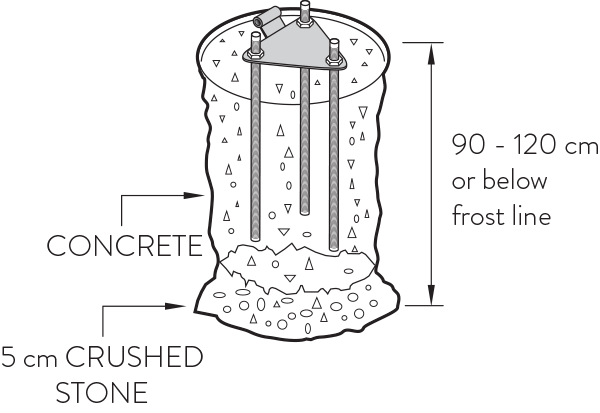

Hole for flagpole 5–12 m

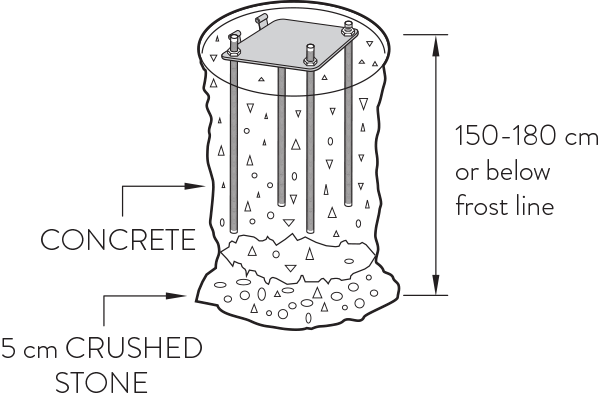

Hole for flagpole 14–18 m

1.2 Assembling the ground set

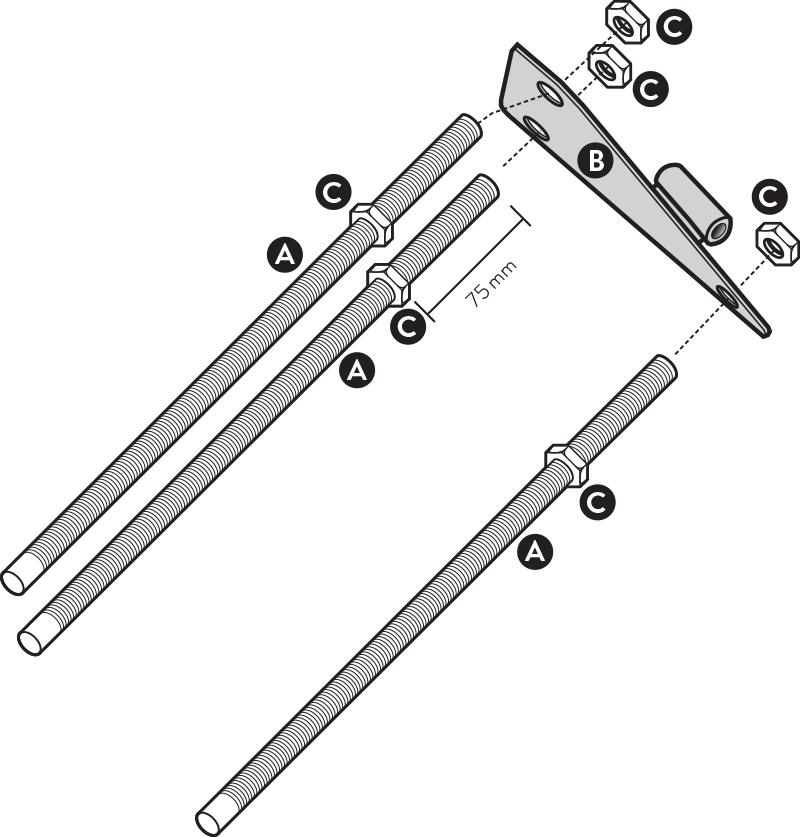

  • Secure lower hinge plate (B) to anchor rods by first threading down bottom jam nuts (C) 75 mm (for flagpole 5–12 m) or 85 mm (for flagpole 14–18 mm) – important, placing over hinge plate and securing top jam nuts (C).
  • Once the base is complete and hole is filled with concrete, insert ground set while gently moving it back and forth, using small movements. Base plate should sit right on top of concrete. Make sure hinge is in a position to allow for raising and lowering of the flagpole without obstructions.

Ground set for flagpole 5–12 m

Ground set for flagpole 14–18 m

1.3 Installing the flagpole on rock

  • When installing on rock, assemble the base plate with the thread rods (M20). Use the base plate as a template for hole drilling. Recommended hole diameter is 30-40 mm; 300 mm deep (for flagpole 5–12 m) or 450 mm deep (for flagpole 14–18 m). Shorten thread rods if needed. Mold the base in the holes using expanding concrete or anchor compound.

2. Finial and Halyard

  • Attach the finial (B) to the revolving truck (C) by pushing them together until you hear a clicking sound. Fasten finial/truck to top of flagpole using the three supplied screws (D). Make sure the screws don’t have any sharp ends from the screwdriver. Thread halyard (A) through finial (B). Attach clips (E) in halyard ends (for ISS, only one clip as below).
  • For external halyard, fasten cleat (F) to flagpole.
  • For ISS (internal halyard), assemble the counterweight (G) according to instructions and attach clips (E) and stop ball (H) to end of halyard.
  • When using a winch system it’s very important to turn in the right direction and that the counterweight responds to crank motion.

3. Raising the Flagpole

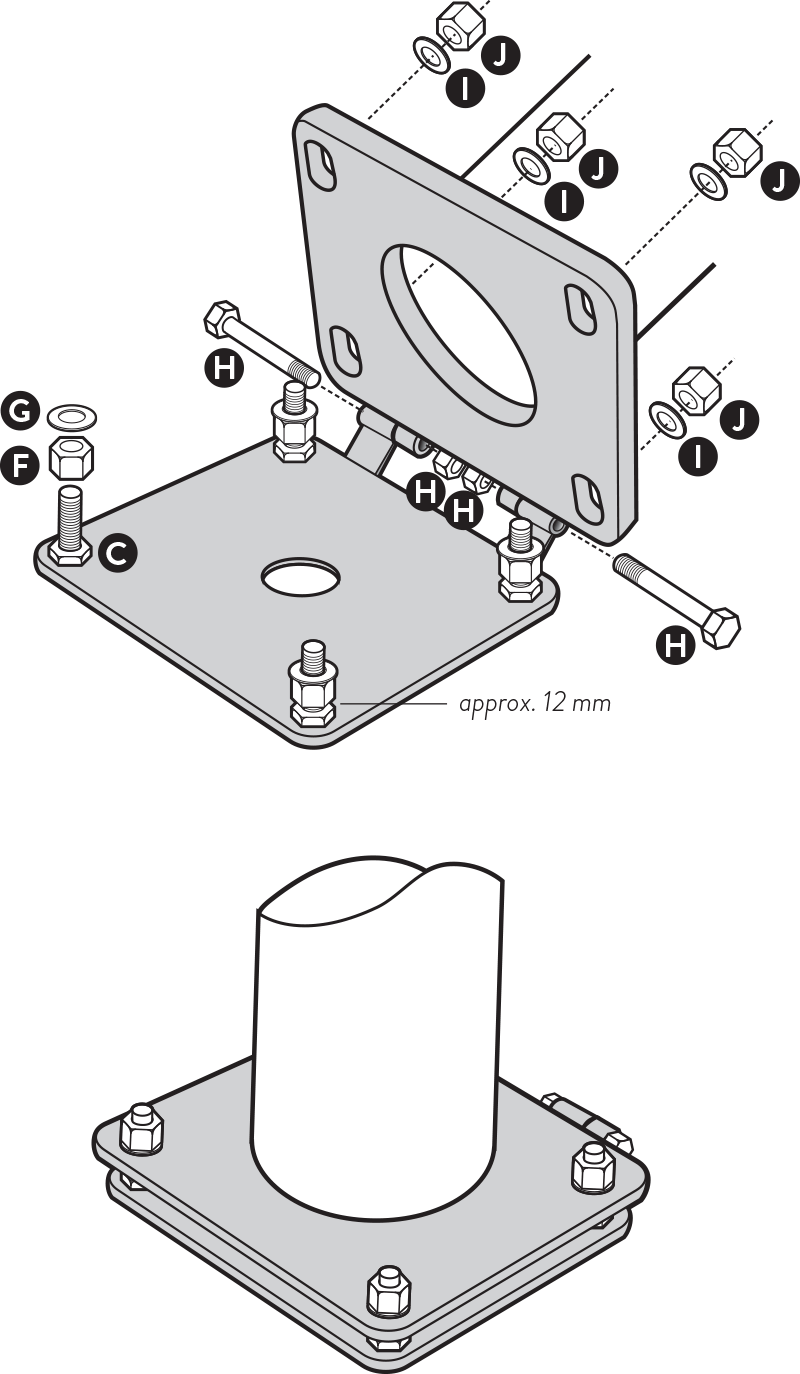

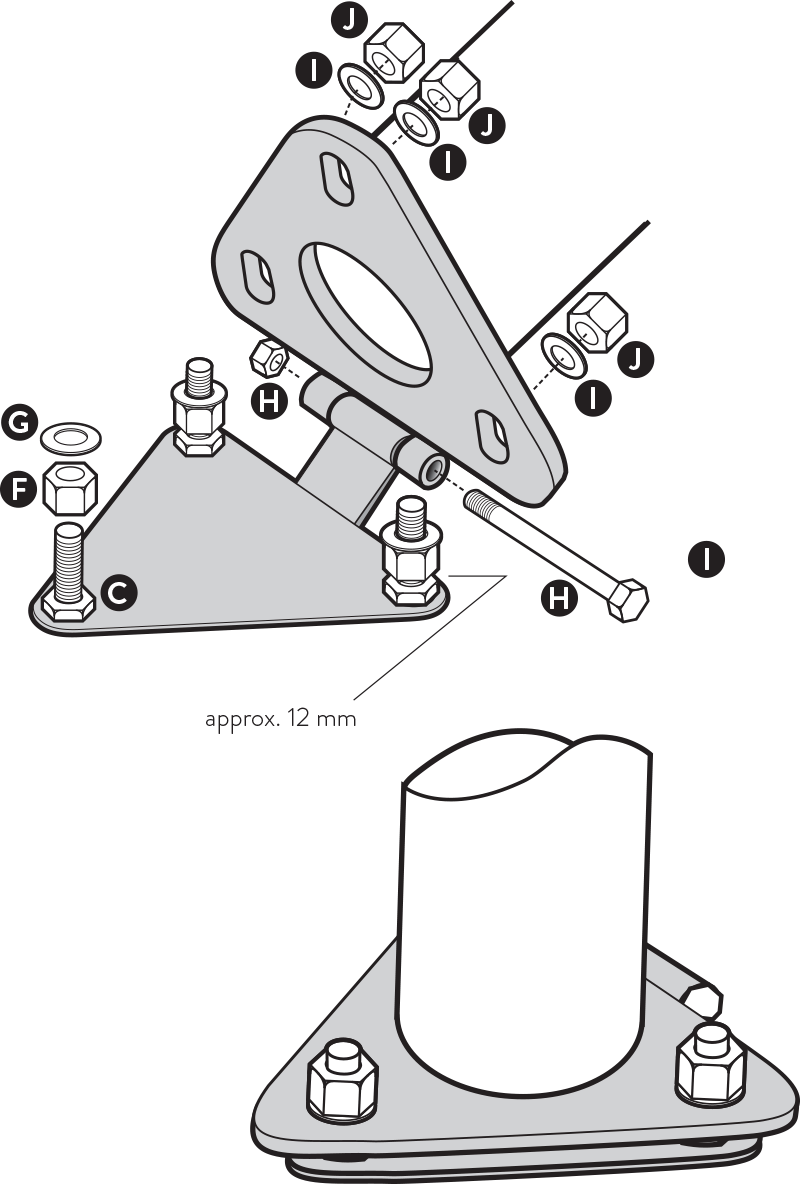

  • When the concrete is firmly set, the flagpole can be raised. Thread lower full nuts (F) and washers (G) onto thread rods leaving 12 mm of exposed rod between full nut (F) and jam nut (C). Ensure levelness from nut to nut using a spirit-level and adjust if needed. Bring base of flagpole to lower base plate and fasten with hinge bolt (H).
  • Raise the flagpole. Place washers (I) and thread top full nuts (J). Adjust levelness through slight adjustments to nuts (F and J). DRAW TIGHT.
  • NOTE: After a few weeks, tighten all nuts as required.

Flagpole 5–12 m

Flagpole 14–18 m

Caring for your flagpole

  • Dig hole according to chart recommendation. If the ground is soft or sandy, increase the hole diameter.
  • Fill bottom 5 cm of hole with crushed stone.
  • Fill hole with concrete. Give the top a convex shape to allow for water runoff.
